When we think of a sailboat, we often imagine a sleek hull slicing through the water with a deep keel underneath. But the keel, the “spine” of a sailboat, wasn’t always there — and even today, it comes in many shapes and forms.
Why didn’t Viking ships have visible keels?
Why do traditional Dutch flat-bottom boats sail just fine without one?
And what makes a modern swing keel so dramatic and, well, bombastic?

Let’s explore.

Did Viking Ships Have a Keel?

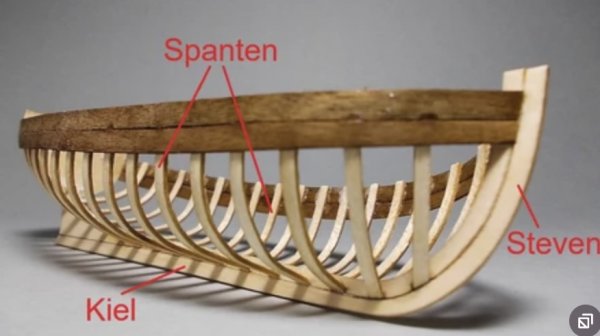

Yes — but not the kind you'd expect. Viking ships had a keel plank running along the bottom, forming the backbone of the hull, but it was shallow and wide, not deep and hydrodynamic like modern keels. That design allowed them to sail in shallow fjords, land directly on beaches, and row when necessary.

A deep keel like we see today would have made a Viking ship slow, hard to maneuver, and prone to grounding. So in a way, their “keel” was almost invisible — built for flexibility, not performance.

Why Don’t Dutch Flat-Bottom Boats Have a Keel?

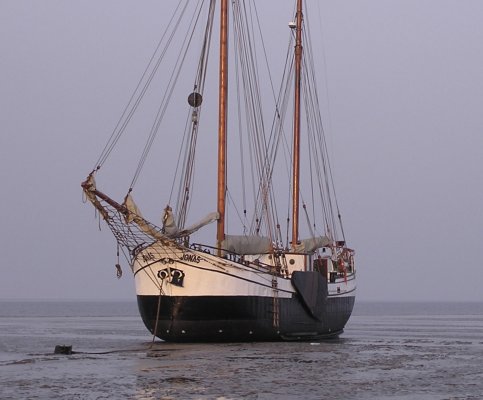

In places like the IJsselmeer, Dutch Wadden Sea, or Zeeuwse Delta, the water is often extremely shallow. Dutch “plattbodenschiffe” (flat-bottom boats) don’t use deep keels — they couldn’t! Instead, they rely on leeboards: large wooden plates on each side of the boat that are lowered into the water to prevent leeway.

These boats can dry out on mudflats, navigate canals, and still sail relatively well — proof that there’s more than one way to stay upright and on course.

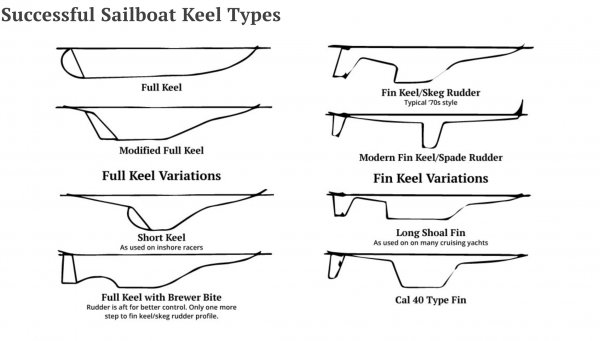

Modern Keel Types – A Quick Comparison

How "Bombastic" Is a Swing Keel?

Swing keels (or centerboards with ballast) can be dramatic — especially on modern high-performance cruisers. These keels swing down into deep water to maximize righting moment and windward ability, then retract for shallow harbors or trailering.

But here's the tradeoff: they're mechanically complex, more prone to wear, and if not trimmed properly, you can lose performance fast. So yes, they can be bombastic — but only when used right.

So... How Visible Is a Viking Ship’s Keel?

Honestly? Barely. If you saw one beached, you’d likely see no deep keel at all. What’s there is structural — a kind of rib running down the bottom — not hydrodynamic. It's part of what made Viking ships so perfect for raiding and exploring: fast, shallow-draft, beachable.

Final Thoughts: Keels Are a Tradeoff

From nearly invisible Viking keel planks to high-tech lifting keels with torpedo bulbs, the evolution of the keel tells a story of adapting to water, wind, and purpose.

Choosing the right keel means balancing:

Draft

Performance

Durability

Where you sail

For shallow waters? → Go with a centerboard, swing keel, or bilge keel.
For ocean passages? → A full keel or deep fin keel.
For speed freaks? → Deep fin or bulb keels with performance rigs.

check also here:

https://goodoldboat.com/keel-design/
